Standard chemical pump

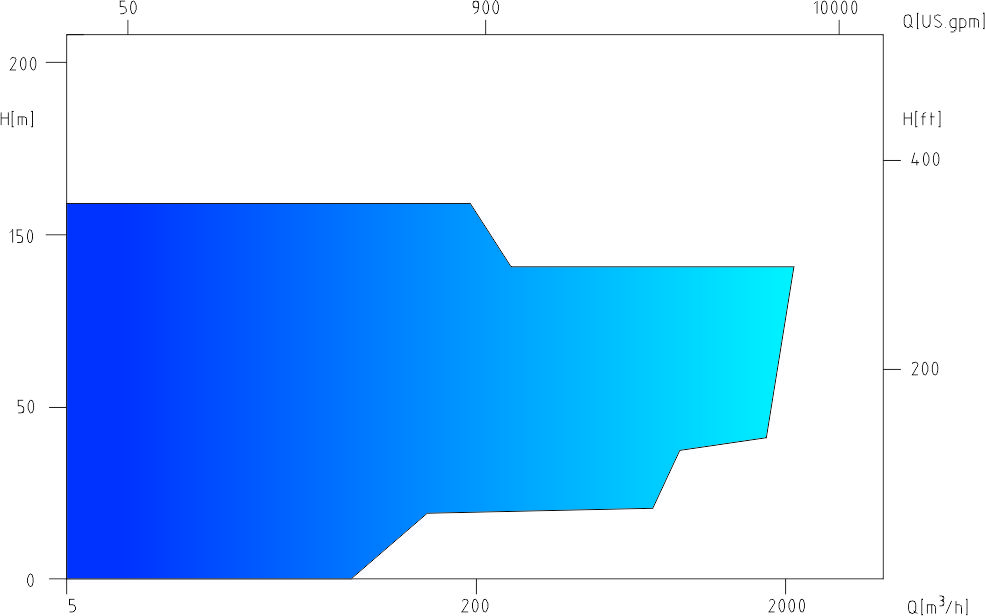

Parameter range

Caliber: DN 32~300mm

Flow rate: Q ~2000 m3/h

Head: H ~160m

Temperature: T -30~+150℃

Design pressure: P ~2.5MPa

Scope of application

Transportation of low-temperature or high-temperature liquids; neutral or corrosive liquids; clean liquids or liquids containing solid particles. Chemical and petrochemical industry/refineries/paper mills and pulp industry/sugar refineries/thermal power plants

Material standard

Casing: cast iron / spheroidal graphite cast iron / stainless steel / duplex stainless steel
Shaft: stainless steel / alloy steel
Impeller: cast iron / bronze / stainless steel / duplex stainless steel

Features

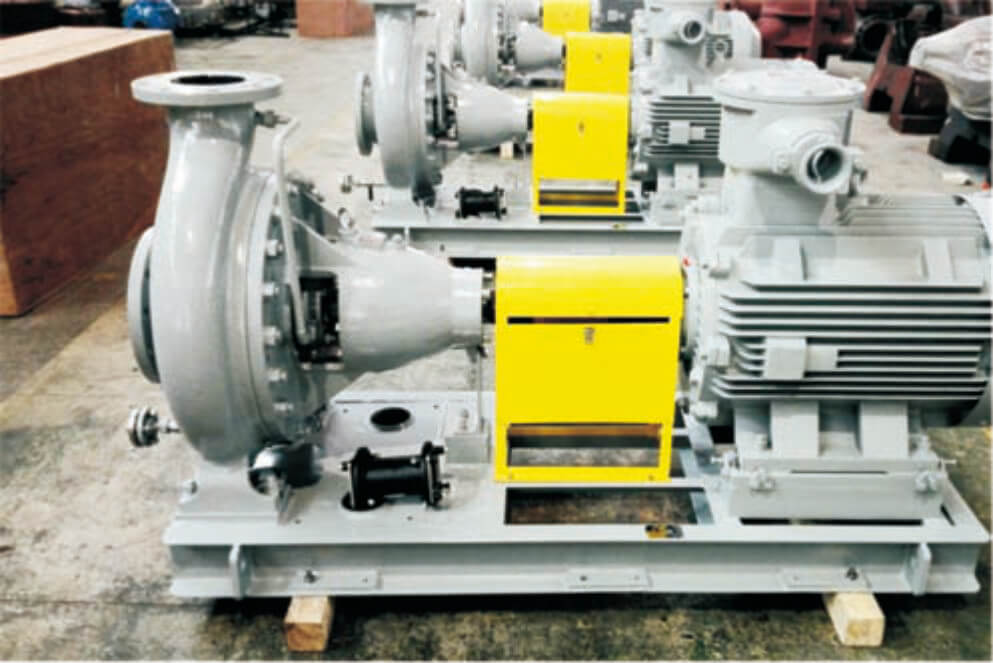

It is a single-stage, horizontal, radially split volute pump. The casing is supported by footing, and has a single-stage radial impeller. The bearing bracket, the shaft, the stuffing box and the impeller form a mounting unit module. Pumps of different specifications are completely interchangable, saving the storage cost of spare parts. Besides, the unit module consisting of the bearing frame, the shaft, the stuffing box and the impeller can be removed without removing the pipes and the motor by removing the removable coupling. The shaft seal is stuffing box seal or mechanical seal, and provided with a cooling, flushing or sealing fluid system.
